SDS2-3VA Dro High-Resolution Digital Readout Display Utilization In Diverse Metal Operations

SDS2-3VA Dro High-Resolution Digital Readout Display Utilization in Diverse Metal Operations

A brief introduction to SINO SDS2-3VA 3-axis DRO digital readout system:

These features facilitate the use of the graphics function. With a 16- and 32-bit calculator, it is the first facility in China to use a DRO system. It also boasts among the highest input frequencies in the whole world, reaching up to 5 MHZ with A/B.
A three-axis digital readout meter that supports the TTL/RS422 signal and works with the KA300 glass linear ruler is the SINO SDS2-3VA. For a variety of uses, this digital readout meter is intended to precisely show and measure the location of machine tool axes. While the TTL/RS422 signal guarantees quick and dependable communication between the ruler and the readout meter, the KA300 glass linear ruler offers accurate and dependable position feedback.

Accurate results for machining operations are produced by the SINO SDS2-3VA digital readout meter, which ensures precise measurement and placement of the machine instrument axes.
Glass Linear Ruler KA300: Because of its exceptional stability and lifespan, this ruler offers trustworthy position feedback in even the most demanding industrial environments.
The digital readout meter's connectivity for both TTL and RS422 signals ensures quick and reliable communication through the KA300 glass linear ruler.
User-Friendly design: The digital readout meter's user-friendly design, which features clear numerical displays, makes it easy to read and comprehend position information.
Versatile Configuration: People can measure and track the location of various machine tool axes simultaneously because the device supports three axes.


SDS2-3VA DRO Digital Readout Systems Functions:

PCD circumferential division (fits milling machines and spark testers)
Involute chamber machining function (fits milling machines)
Bevel and angular surface finishing (unique to milling machines)
N3 function (unique to milling machines)
Diagonal boring using a milling machine
R-arc function (unique to milling machines)
Tape measure function (for use with a lathe only)
200-piece set of tools (with a lathe included)


SINO SDS2-3VA digital readout system specifications plus a glass linear scale

Preset Features: The SDS2-3VA frequently has preset features that let the user save and retrieve particular measurement values. When doing repetitive machining activities that require repeating exact measurements, this capability comes in handy.

Error Compensation: To accommodate for measurement mistakes or imperfections in machine tools, the system may have error compensation features. The system can improve measurement accuracy by applying compensation values and calibrating the system.

Data Interface: The SDS2-3VA digital readout system may come with data interfaces, such as USB or RS-232, that enable data transfer and external device communication. This can facilitate data logging for quality control objectives or computer system connectivity.

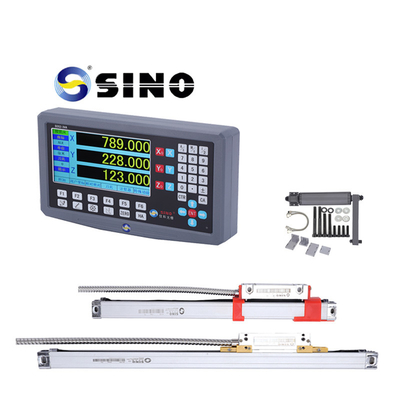

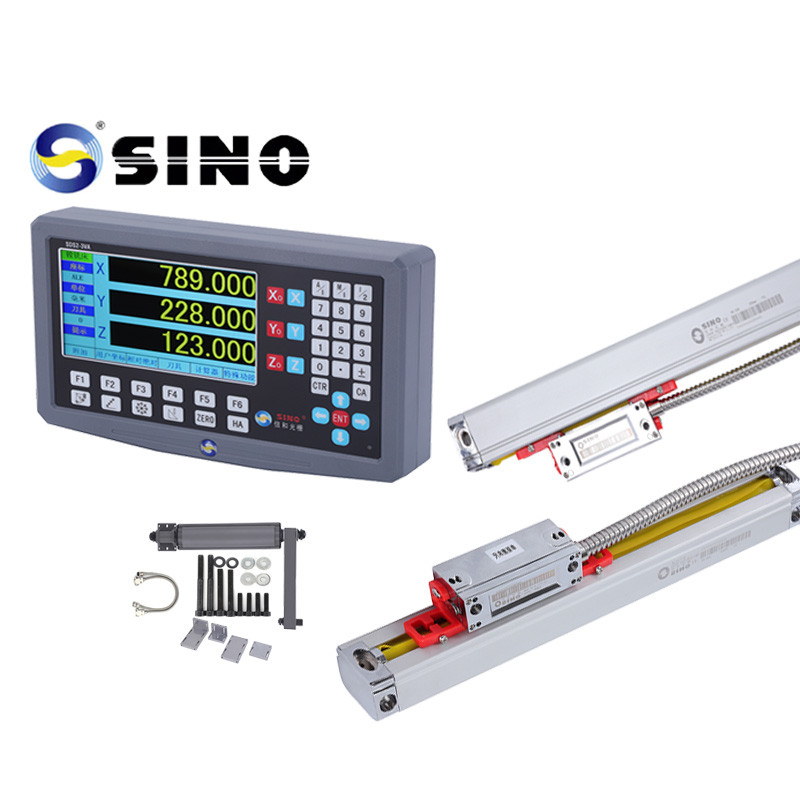

Product image /photos:

The rack in the picture is optioned, not standard product.
