1um SINO DRO With A User-Friendly, Intuitive Interface And Configurable Milling Machine Settings

1um SINO DRO with a User-Friendly, Intuitive Interface and Configurable Milling Machine Settings

These features facilitate the use of the graphics function. With a 16- and 32-bit calculator, it is the first facility in China to use a DRO system. It also boasts one of the highest input frequencies in the world, reaching up to 5 MHZ with A/B.

Features:

Three Axis Capability: The SINO DRO can measure and monitor the position of three machine axes at once because it supports up to three axes.
Digital Readout Unit (DRO): This device provides real-time measurements by displaying accurate numerical readings of the machine axes.TTL Input Signals: Often utilized in industrial settings, TTL (Transistor-Transistor Logic) input signals guarantee accurate and dependable data transfer. This is why the DRO system makes use of them.
Compatibility: The system can be used for a variety of machining applications because it is made to function with both lathes and milling machines.
User-Friendly Interface: It is simple to comprehend and operate the DRO device thanks to its user-friendly interface.

Usage:

Installation: For easy reading and access, place the DRO unit next to your milling machine or lathe in a handy spot.
Connection: Using the supplied cables and connectors, attach the DRO device to the TTL input signals of your machine's axes.

Calibration: To guarantee precise measurements, carry out the required calibration processes. Setting reference points and zeroing the scales may be necessary for this.Operation: Turn on the machine and move the axes while keeping an eye on the position readings shown on the DRO unit. By giving you real-time measurements, the DRO unit will enable you to accurately position your workpiece or carry out machining operations.

SDS2-3VA DRO System Features:

The LCD display is commonly found in lathe, drilling, boring, and milling equipment, and it is compatible with all Chinese optical linear glass scales.
Lathes and milling machines are more useful to customers from a variety of nations because they can flip between Chinese and English on a single display.

Restitution for Linear Inaccuracies

Keep in Mind for Power Outages

Change of bedtime

Mathematical calculations

RS-232-C interface option

Specifications of SINO SDS2-3VA digital readout system + linear scale encoder


A high-performance universal display console with milling, lathe, and grinding capabilities is provided by the SDS2-3VA.

This three-axis type supports the connection of up to three linear encoders. To combine axes or modify the input to fit equipment made by other manufacturers, there are more interfaces available. Please refer to the compatibility guide for encoders below.

strong die cast casing with a front panel membrane that is both haptic and long-lasting.

large, easily readable LCD screen.

PCD, line of holes, 200 zero memory, radius/diameter display, and tool offsets are among the features.

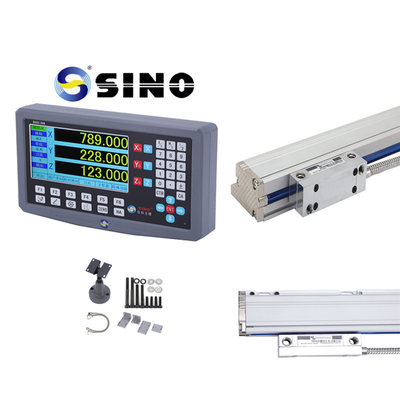

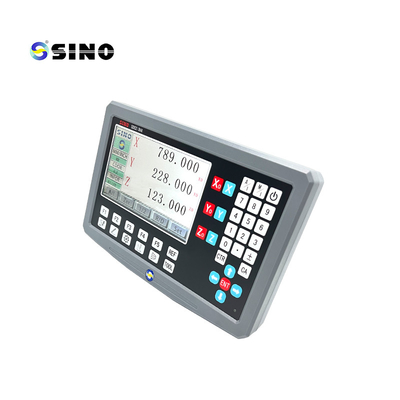

Product image /photos:

The rack in the picture is optioned, not standard product.
