Iron DRO Milling Machine Digital Display Meter With 3 Axis Digital Readout Systems AC100-240V

Iron DRO Milling Machine Digital Display Meter With 3 Axis Digital Readout Systems AC100-240V

Description of Digital Readout Systems DRO

Digital Readout (DRO) Systems are employed to display the cutting tool's position in relation to a workpiece. Encoders installed on the axis detect the positions. They have a keyboard and a numeric display. Surface grinders, lathes, and milling and boring equipment are all equipped with DRO systems.

Digital Readout Systems DRO Details:

Resolution swap feature
Bolt hole designs and centerline determination

Zero reset, preset set, and tool error compensation

Metric / Metric, Inch / Absolute

prompts for messages and memory backup

85V–250V, Worldwide Usage

Specification of Digital Readout Systems DRO

1. Range of supply voltage: AC 80V–260V; 50–60Hz; US Plug compatible

   15VA of power usage

2. Operating temperature: between 0 and 45 degrees Celsius

3. Temperature range for storage: -30 to 70 degrees Celsius

4. Acceptable input signal for the readout is TTL/RS422 square

   wave
5. Allowable input signal frequency: Less than 5MHz
6. Display resolution: 5µm/1µm/0.5µm/0.1µm
7. Min resolution of digital display angle : 0.0001/pulse

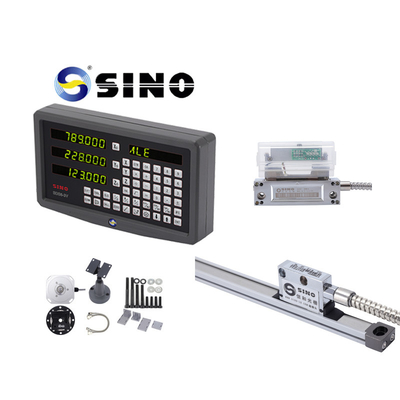

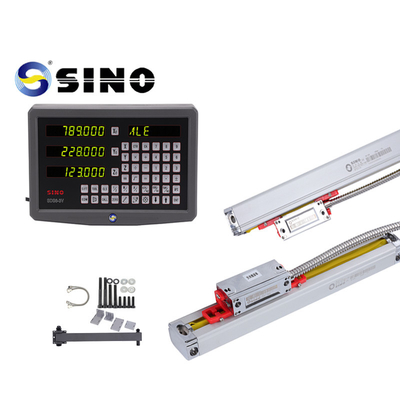

Product image /photos:

The rack in the picture is optioned, not standard product.
