3 Axis Digital Readout System Dro High Precision Optical Digital Linear Scale With Iron

Brand Name:	SINO
Model Number:	SDS6-3VA, KA300, Ka500
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Name:

KA600 Linear Scale Encoder SDS6-3Va DRO Sensor

Number Of Axis:

3 Axis Dro Systems

Material:

Iron/Metal

Signal:

Digital Readout: TTL / RS422/EIA-422-A

Voltage:

Digital Readout: AC100-240V / 50-60Hz

Suitable For:

Milling Machine, Boring Machine, Lathe

Resolution:

1um,5um,0.5um

Display:

LCD

Shell:

Aluminum

Warranty:

1 Year

Voltage Range:

AC100-240V / 50-60Hz

Power Consumption:

15VA

Output Signal:

TTL

Supply Ability:

1000 pcs per month

Highlight:

Iron 3 Axis Digital Readout System

Optical 3 Axis Digital Readout System

Product Description

Dro High Precision Optical Digital Linear Scale With Iron 3 Axis Digital Readout System

Digital readout details:

Because of its great precision, durability, and user-friendliness, the SDS6-3VA digital readout system is a popular option for machinists and operators in the industrial sector.
Please be aware that the SDS6-3VA digital readout system may have changed or been replaced with a newer version since September 2021, when my knowledge cutoff was established.

Improved Functions of SINO Opitical Sensor

1. The digital screen was replaced with a 7-inch TFT LCD display;
2. Multilingual support;

3. Adjusting the brightness;

4. Program's stability;

5. More sophisticated EMC test indicators and anti-interference capabilities.

AC 80V–260V, 50–60Hz supply voltage range; compatible with US plugs

The power utilized was 15VA.

Operating temperature range: 0 to 45 degrees Celsius

Temperature range for storage: -30 to 70 degrees Celsius

Square wave TTL/RS422 is the allowed input signal for the readout.

Acceptable input signal frequency: less than 5 MHz

Display resolution: 5 µm/1 µm/0.5 µm/0.1 µm

Minimum resolution for a digital display angle is 0.0001/pulse.

Packaging List :

1 PC	3 Axis LED digital readout SDS6-3V
1 PC	Protection cover
1 PC	Instruction Manual (English)
1 PC	Cable

Product image /photos:

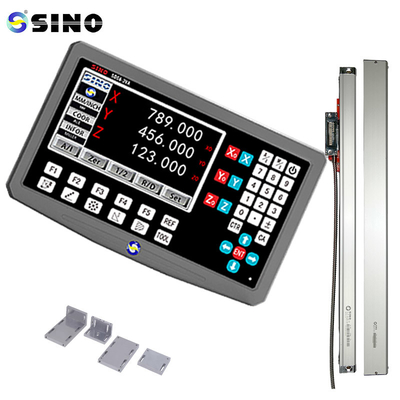

3 Axis Digital Readout System Dro High Precision Optical Digital Linear Scale With Iron 0

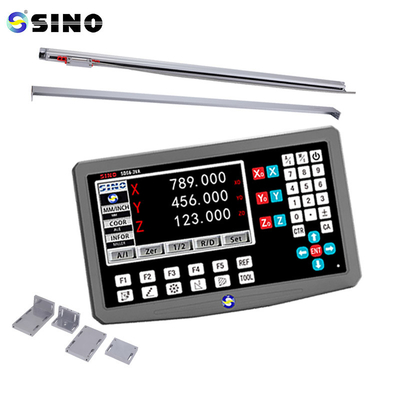

3 Axis Digital Readout System Dro High Precision Optical Digital Linear Scale With Iron 1

The rack in the picture is optioned, not standard product.

3 Axis Digital Readout System Dro High Precision Optical Digital Linear Scale With Iron 2
