Dro High Precision Optical Digital Linear Scale Iron 3 Axis Digital Readout System

Brand Name:	SINO
Model Number:	SDS6-3VA, KA300, Ka500
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Name:

KA500 Linear Scale SDS6-3Va DRO Sensor

Number Of Axis:

3 Axis Dro Systems Digital Readout

Material:

Iron/Metal

Signal:

Digital Readout: TTL / RS422

Voltage:

Digital Readout: AC100-240V / 50-60Hz

Suitable For:

Milling Machine, Boring Machine, Lathe

Resolution:

1um,5um,0.5um

Weight:

2.5kg

Storage Temperature:

0-60℃

Warranty:

1 Year

Number Of Axis:

3 Axis Digital Readout Encoder Ka300

Sealing Protection Method:

IP53

Supply Ability:

1000 pcs per month

Highlight:

Iron 3 Axis Digital Readout System

3 Axis Digital Readout System

Product Description

SINO SDS6-3VA 3 Axis Digital Readout System Dro High Precision Optical Digital Linear Scale

Digital readout details:

Machinists and operators in the manufacturing sector use the SDS6-3VA digital readout system because of its high precision, dependability, and user-friendliness.
Please be aware that the SDS6-3VA digital readout system may have undergone modifications or newer versions following my knowledge cutoff in September 2021.

Improved Functions of SINO Opitical Sensor

1. Making a 7-inch TFT LCD panel out of the digital screen;

2. Multilingual support;

3. Adjustable brightness;

4. Enhanced program stability;

5. More sophisticated EMC test indicators and enhanced anti-interference capabilities.

Range of supply voltage: AC 80V–260V, 50–60Hz, US plug accessible

15VA of power is used.

Temperature range for operation: 0 to 45 degrees Celsius

Temperature range for storage: -30 to 70 degrees Celsius

Allowable input signal for readout: TTL/RS422 square wave

Allowable input signal frequency: Less than 5MHz

Display resolution: 5µm/1µm/0.5µm/0.1µm

Min resolution of digital display angle : 0.0001/pulse

Packaging List :

1 PC	3 Axis LED digital readout SDS6-3V
1 PC	Protection cover
1 PC	Instruction Manual (English)
1 PC	Cable

Product image /photos:

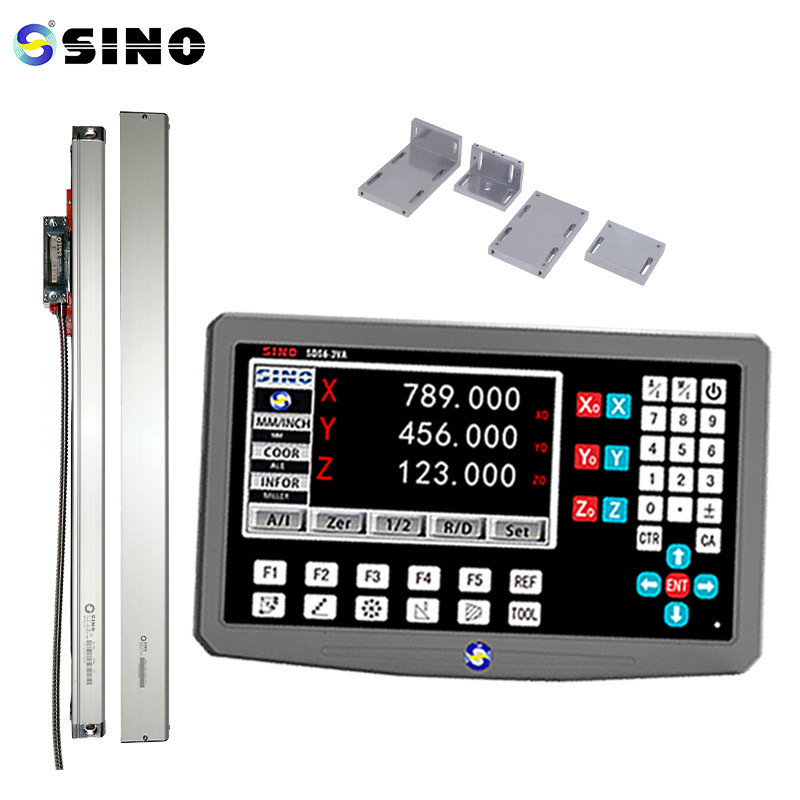

Dro High Precision Optical Digital Linear Scale Iron 3 Axis Digital Readout System 0

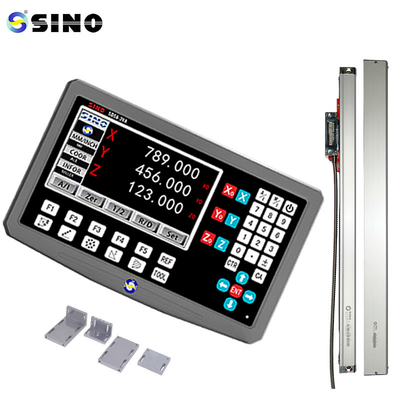

Dro High Precision Optical Digital Linear Scale Iron 3 Axis Digital Readout System 1

The rack in the picture is optioned, not standard product.

Dro High Precision Optical Digital Linear Scale Iron 3 Axis Digital Readout System 2
